Reverse osmosis is opposite of osmosis process occurs when the water is moved across the membrane against the concentration gradient, from lower concentration to higher concentration.
EDI is a revolutionary technology for the water treatment. It uses demineralization process of electrical regeneration ion exchange instead of traditional demineralization process of mixed ion exchange DI. The resin & selective ion membrane can reach high desalination effect by exchanging the ion.
Using RO - EDI process in combination, we can expect the output water quality up to 10-15 mega ohm.cm.
Our Plant Commonly Includes Following Steps
| Raw water pre-treatment | Suspended particles & organic substance removal |
| Water softner in series with automatic regeneration | Reduction of Ca & Mg levels |
| Fine filter | Complete removal of suspended particles |
| SDI Reduction | UF Hallow Fibre membranes used for silica reduction and removal of bacteria |
| RO system | Conductivity, TOC & SiO2 removal |
| EDI Technology | Nearly complete reduction of CO2, Cl2 & SiO2 |
| Integrated control & monitoring system | Fully automatic operation with online monitoring |

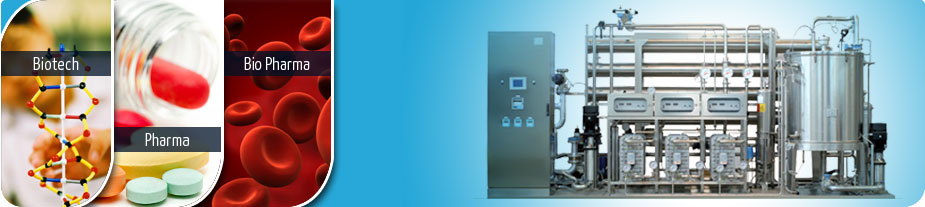

Salient Features of our RO+EDI system for purified water are
- Water quality complying pharmacopoeia standards of GMP & FDA regulation.
- Modularization, full automatic control.
- Compact, space-saving, with plug & play skid-mounted construction.
- Completely Sanitary construction for safety against Microbiological attack.
- Extreme reduction of the CO2 and SiO2 levels.
- Excellent reduction of the TOC value.
- Full functional FAT test in your presence at our factory.
- Shorter project execution times.
Applications
- Ultrapure water for pharma industries.
- Purified water for electronics & food industries.
- Purification & preparation of water for textiles, chemicals, beverages & brewing industries.
Click here if you are looking for Purified Water Distribution System
